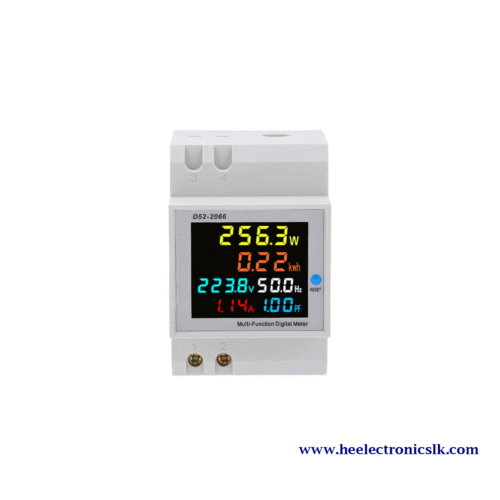

Electricity single phase meter 220V

Item Type: Watt‑Hour Meter
Model: D52-2066
Material: ABS
Uses: used in chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment and other places
Measurement Accuracy: 1%±2 Words
Measuring Range: AC Voltage: AC40.0-300.0V, AC Current: AC0-100.0A
Current Display Resolution: 0.01A
Power Frequency: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Active Power: the measurement range is 0-30000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W
Electricity:
0-9999kwh, 0-999.99kwh, the minimum display resolution is 0.01kwh
1000.0-9999.9kwh, the minimum display resolution is 0.1kwh
10000-9999kwh, the minimum resolution is 1kwh
Measurement Speed: about 2 times per second
Installation Method: Rail Type
